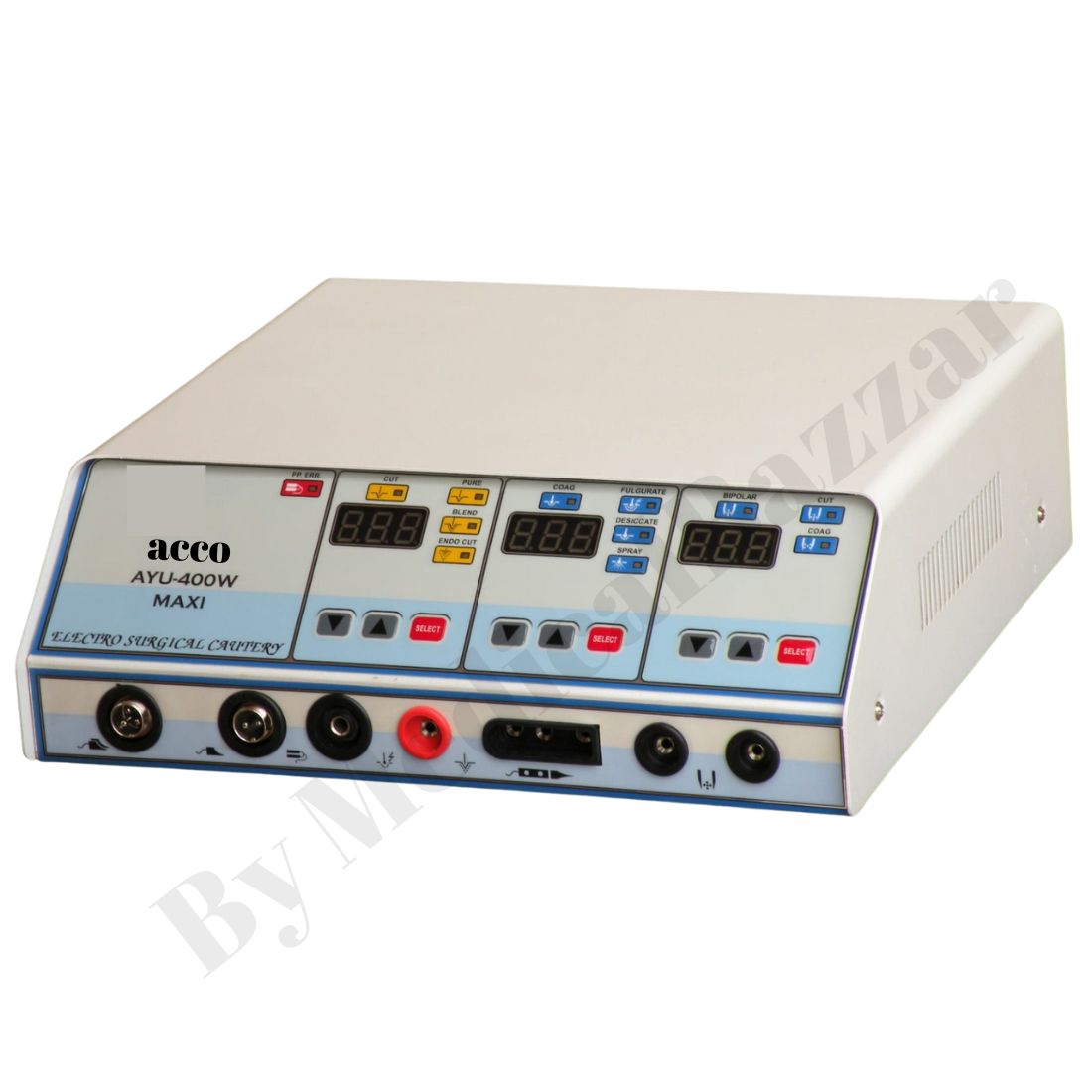

Digital High Frequency Electro Surgical Unit 400 Watt AYU-400-MAXI
Digital High Frequency Electro Surgical Unit 400 Watt AYU-400-MAXI
Surgical Diathermy / Surgical Cautery Machine 400 Watt AYU-400-MAXI
Digital High Frequency Electro Surgical Unit with Separate Bipolar Foot Switch
AYU 400 MAXI is a high frequency Electro Surgical Unit Micro controller based innovative design, together with high reliability makes AYU 400 MAXI Electro Surgical Diathermy unit the most favorable choice of doctors. The technical ability of the unit is combined with patient's safety that are of prime importance both for patient and the user. The AYU 400 MAXI Electro Surgical Diathermy is designed with SMPS power supply which provides particular safety and reliability. AYU 400 MAXI is user friendly Electro Surgical unit.
SAFETY IN USE
The Technical conceptions of the AYU 400 MAXI meet the requirements of highly refined Electro Surgical techniques all national and international safety standards are confirmed. The micro function and knob allows for an instant variation in the output power for more delicate application such as neurological or micro surgery.
Features :
-
Cost effective
-
Prevent accidents
-
Microprocessor control
-
Easy installation
-
Lightweight
-
Simple to operate
-
Durable structure
-
Higher output
Application Areas
-
Otolaryngology
-
Gynecology
-
Ophthalmology
-
Vascular disease
-
Aesthetic
-
Dermatology

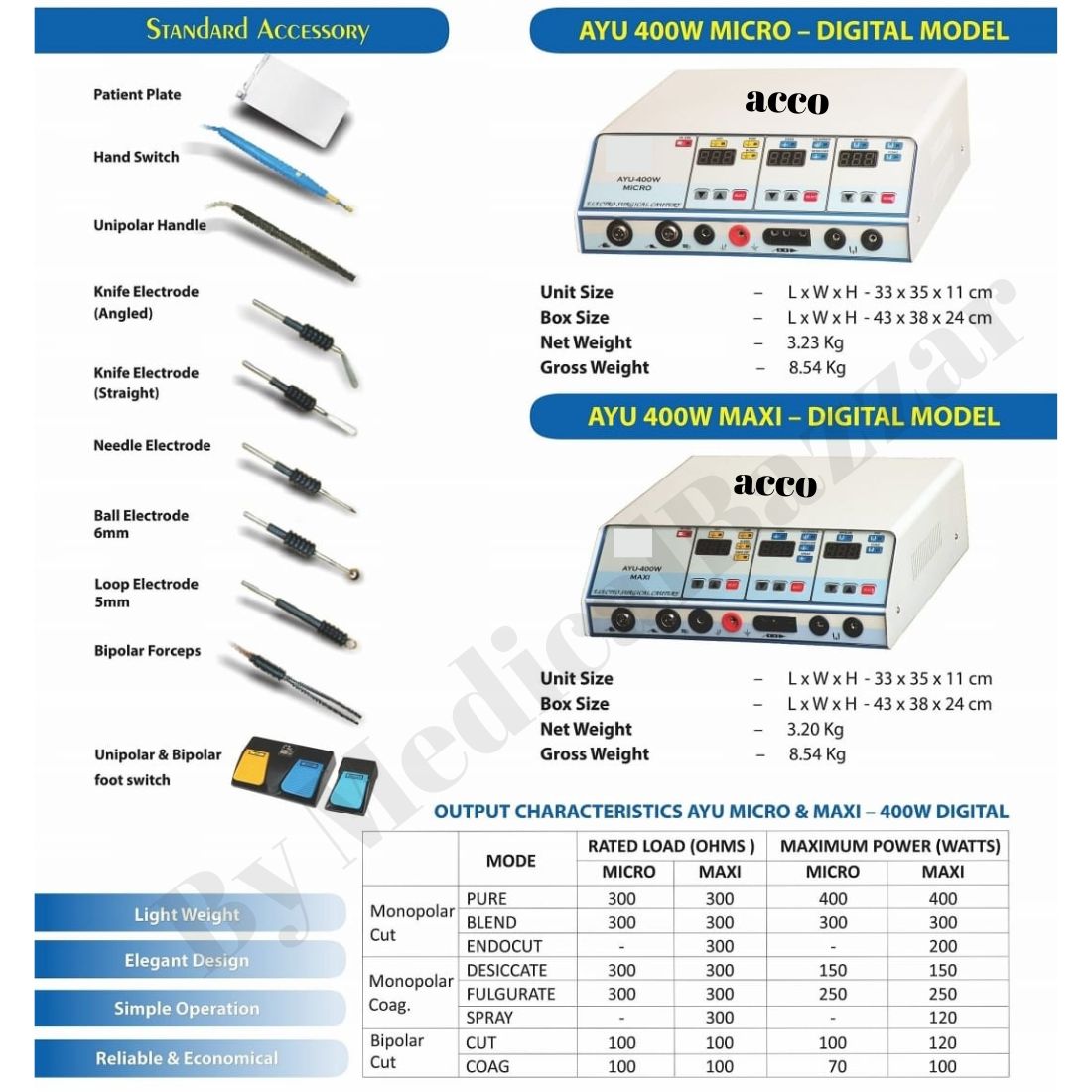

SPECIFICATIONS | ||||
MODE | RATED LOAD (OHMS) | MAXIMUM POWER(WATTS) | ||
Monopolar Cut |
Pure Blend Endo Cut |
300 300 300 |
400 300 200 |
|
Monopolar Coag. |
Desiccate Fulgurate Spray |
300 300 300 |
150 250 120 |
|
Bipolar |
Cut Coag |
100 100 |
120 100 |
Unit Size - L*W*H - 355x330x125 mm
Box Size - L*W*H - 430x405x280 mm
Net Weight - 5kg.700gm Gross Weight - 11kg . 200gm
